ISP

GH3580A

Specifications:
CIS input: Supports up to 50M, CMOS sensor RGB, 4-LANE MIPI, data bit width of 10 bits;
Video output: MJPEG/YUV
ISP Functions: High Performance 2D Noise Reduction, Automatic Exposure/Automatic White Balance, Lens Shadow Correction, Defect Detection, and Bad Point Compensation
OSD Function: Supports bidirectional UAC, MIC-IN, SPEAKER-OUT
Image resolution: Maximum 8192x6144
External interface: I2C  UART  GPIO  SPI  I2S
Others: Temperature range: -40℃ ~ 85℃

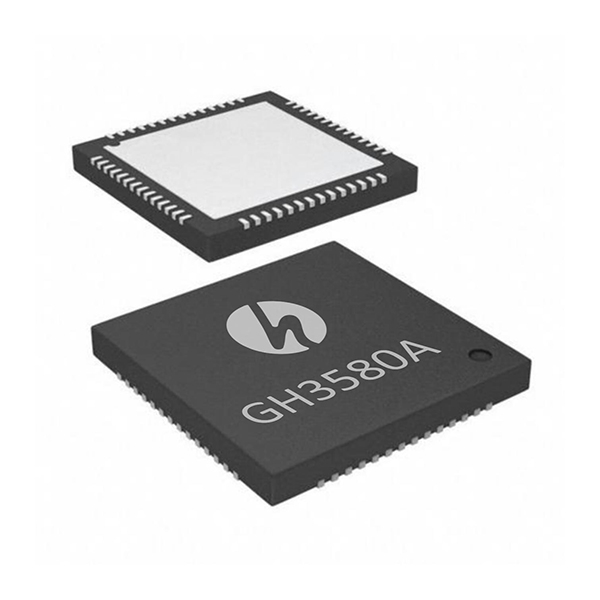

    GH3580A: High performance 50M USB-ISP chip
    GH3580A is a professional level image processing chip developed for the USB high pixel market demand, supporting up to 50 million pixel CMOS sensors. Frame rate: 50M@5FPS , 20M@10FPS , 12M@10FPS , 4K@30FPS , 2K@60FPS , 1080P@120FPS , 720P@240FPS. The input interface supports 10 bit Bayer format. GH3580A supports standard UVC/UAC protocols,The GH3580A is embedded with a powerful 2D denoising processing engine, supports OSD function, supports UVC PU/CT control, and has an enhanced engine to improve the long-distance transmission quality of USB signals, which can adapt to various market application needs of USB cameras.
