ISP

GH3520A

Specifications:
CIS input: Supports up to 2M, CMOS sensor DVP input, data bit width of 10 bits;
Video output: MJPEG/YUV
ISP Functions: High performance 3D/2D noise reduction, AE/AWB/AF, Lens shadow correction, defect detection, and bad pixel compensation
OSD Function: Support one-way UAC, MIC-IN
Image resolution: Maximum 1920x1080
External interface: I2C  UART  GPIO  SPI  I2S
Others: Temperature range: -40℃ ~ 85℃

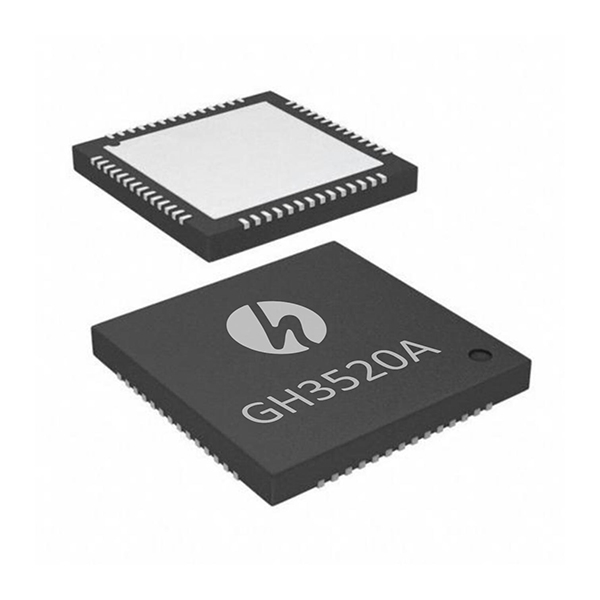

    GH3520A: High performance 2M USB-ISP chip
    GH3520A is a professional level image processing chip developed for the USB high pixel market demand, supporting up to 2 million pixel CMOS sensors. Frame rate: 1080P@30FPS , 720P@60FPS. The input interface supports DVP 10 bit Bayer format. The GH3520A supports the standard UVC/UAC protocol and is embedded with a powerful 3D/2D denoising engine. It supports OSD function, UVC PU/CT control, and has an enhanced engine to improve the long-distance transmission quality of USB signals, making it suitable for various market applications of USB cameras.
